Front Inner Handle

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Disconnect the door lock switch connector.

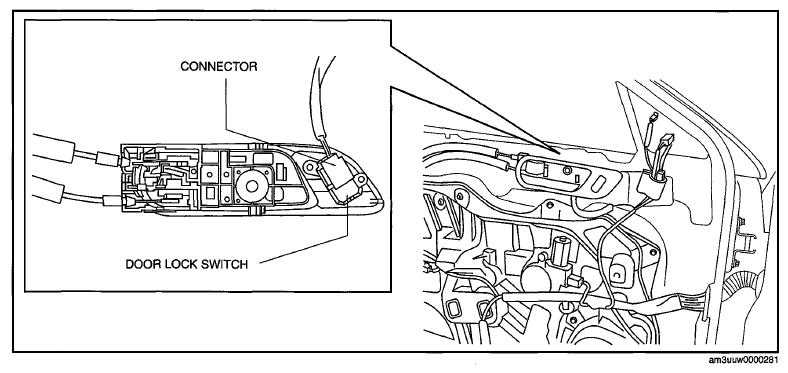

    Fig 1: Identifying Door Lock Switch Connector
    G06731887Courtesy of MAZDA MOTORS CORP.
  5. Disconnect each cable and remove the front inner handle.
  6. Install in the reverse order of removal.
    Fig 2: Identifying Front Inner Handle And Cable
    G06731888Courtesy of MAZDA MOTORS CORP.
