Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Remove the front inner handle. (See INNER HANDLE REMOVAL/INSTALLATION ).
  5. Remove the screws, then remove the door lock switch.
  6. Install in the reverse order of removal.

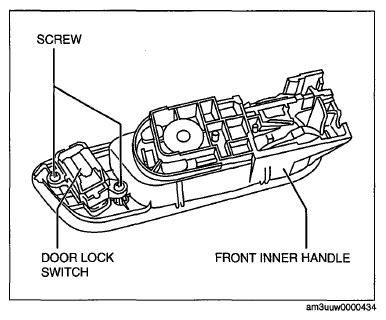

    Fig 1: Identifying Door Lock Switch And Screws
    G06731890Courtesy of MAZDA MOTORS CORP.
