Tweeter Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the tweeter in the direction of the arrow shown in the figure.
  4. Install in the reverse order of removal.

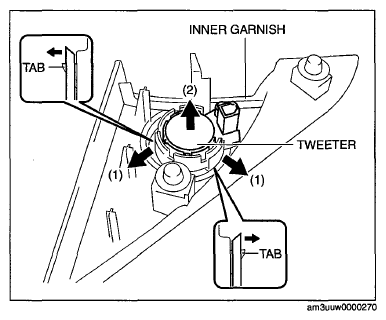

    Fig 1: Removing Inner Garnish And Tweeter
    G06732319Courtesy of FORD MOTOR CO.
