Steering Switch Removal/Installation

  1. Disconnect the negative battery cable and wait for 1 min or more.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] ). (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
  4. Remove the screw.

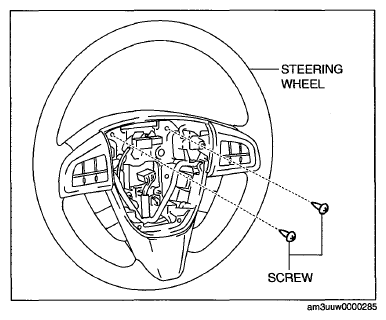

    Fig 1: Identifying Steering Wheel And Screw
    G06732373Courtesy of FORD MOTOR CO.
  5. Remove the wiring harness from the cover hook.

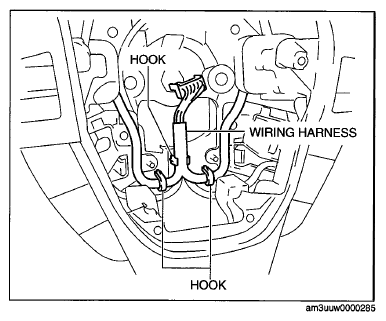

    Fig 2: Identifying Wiring Harness And Hook
    G06732374Courtesy of FORD MOTOR CO.
  6. Remove the cover tabs and pins from the steering wheel.

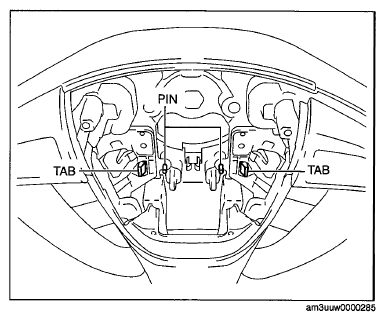

    Fig 3: Identifying Steering Wheel Cover Tabs
    G06732375Courtesy of FORD MOTOR CO.
  7. Remove the cover.

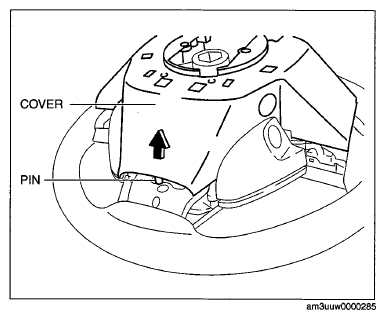

    Fig 4: Removing Cover
    G06732376Courtesy of FORD MOTOR CO.
  8. Disconnect the connector.
  9. Remove the screw.

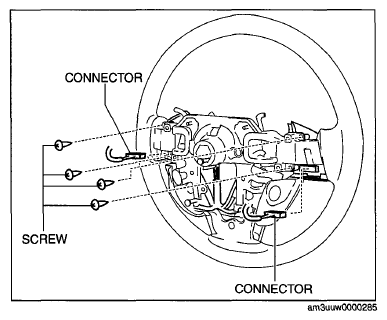

    Fig 5: Identifying Connector And Mounting Screw
    G06732377Courtesy of FORD MOTOR CO.
  10. Remove the steering switch pins from the steering wheel.
  11. Remove the steering switch.
  12. Install in the reverse order of removal.

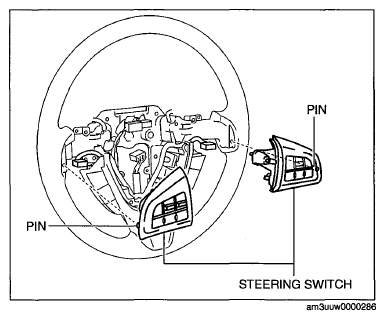

    Fig 6: Identifying Steering Switch And Pin
    G06732378Courtesy of FORD MOTOR CO.
