With Bluetooth System

  1. Disconnect the negative battery cable and wait for 1 min or more.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] ). (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
  3. Disconnect the steering switch connector.
  4. Verify the resistance between the steering switch terminals.

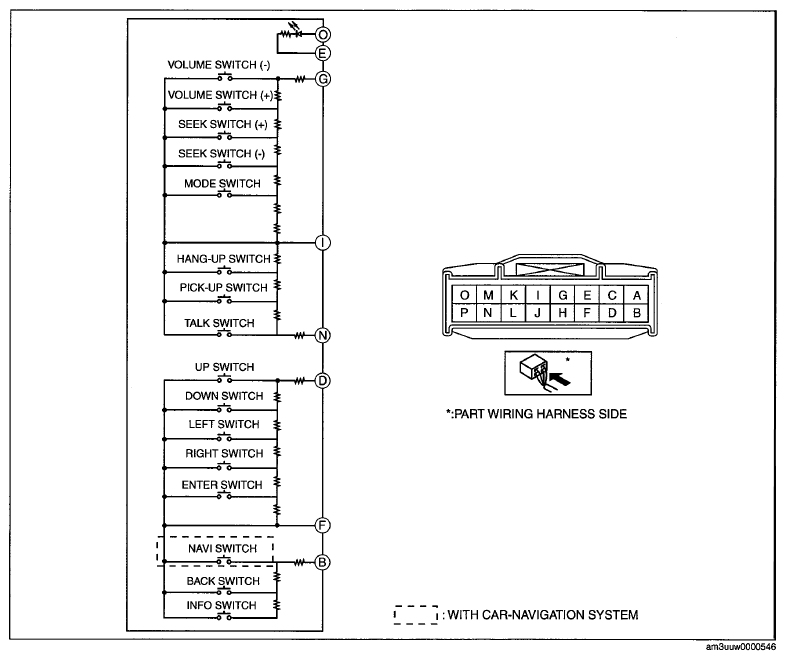

    Fig 1: Identifying Steering Switch Connector Terminals (With Bluetooth System)
    G06732384Courtesy of FORD MOTOR CO.
    • If not within the specification, replace the steering switch.

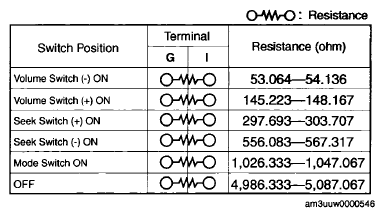

      Fig 2: Steering Switch Terminals Resistance Chart (1 Of 4)
      G07876060Courtesy of FORD MOTOR CO.

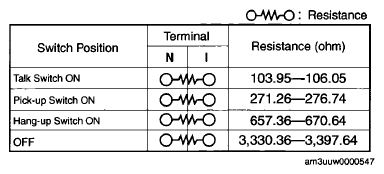

      Fig 3: Steering Switch Terminals Resistance Chart (2 Of 4)
      G07876061Courtesy of FORD MOTOR CO.

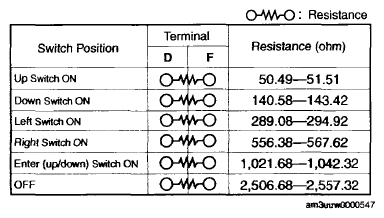

      Fig 4: Steering Switch Terminals Resistance Chart (3 Of 4)
      G07876056Courtesy of FORD MOTOR CO.

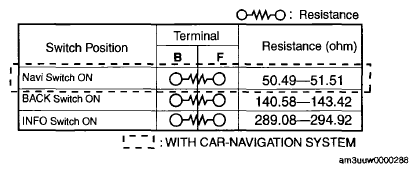

      Fig 5: Steering Switch Terminals Resistance Chart (4 Of 4)
      G07876063Courtesy of FORD MOTOR CO.
  5. Apply battery positive voltage to steering switch terminal O, and connect terminal E to ground.
  6. Verify that the LED illuminates.
    • If the LED does not illuminate, replace the steering switch.

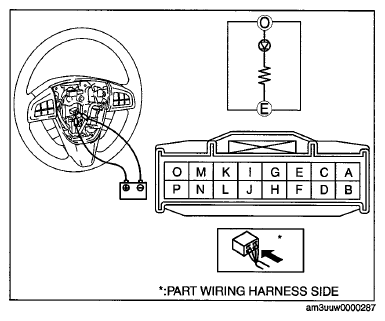

      Fig 6: Identifying Steering Switch Connector Terminal
      G06732383Courtesy of FORD MOTOR CO.
