Condenser Removal/Installation: 4SD

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
    2. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    3. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
    4. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Remove the bolt.
  5. Remove the condenser.
  6. Install in the reverse order of removal. connector

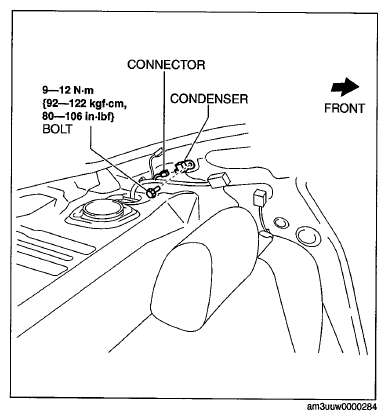

    Fig 1: Condenser, Connector And Mounting Bolt With Torque Specifications (4SD)
    G06732338Courtesy of FORD MOTOR CO.
