Bass-Box Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the connector.
  3. Remove the short-cord.
  4. Remove the bolt.
  5. Remove the bass-box.
  6. Install in the reverse order of removal.

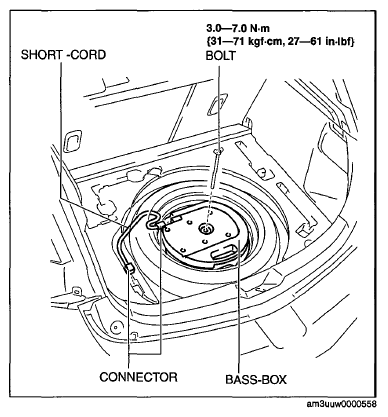

    Fig 1: Identifying Bass-Box, Short-Cord And Connector
    G06732322Courtesy of FORD MOTOR CO.
