Audio Unit Disassembly/Assembly

CAUTION:
  • When disassembling the audio unit, it could get scratched if it is placed directly on the ground. When disassembling the audio unit, spread a soft cloth underneath to perform the work.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

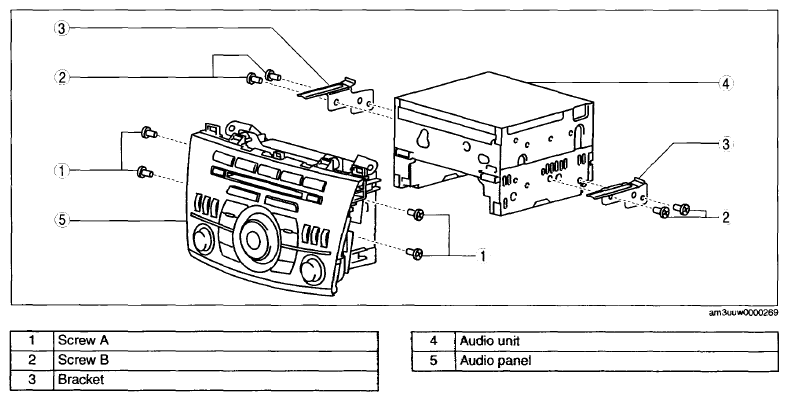

    Fig 1: Identifying Audio Unit, Audio Panel, Bracket And Screws
    G07875963Courtesy of FORD MOTOR CO.
