Socket Removal Note

  1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a tape-wrapped fastener remover.

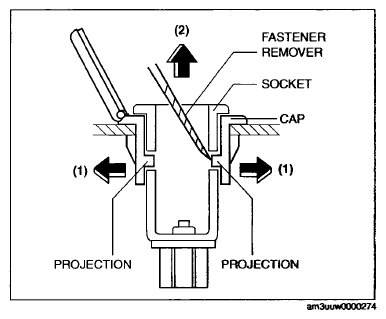

    Fig 1: Removing Socket
    G07876074Courtesy of FORD MOTOR CO.
