Accessory Socket Removal/Installation: Front

  1. Disconnect the negative battery cable.
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION ).
  3. Remove the shift knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
  4. Remove the selector lever knob. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
  5. Remove the shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
  6. Remove in the order indicated in the table.

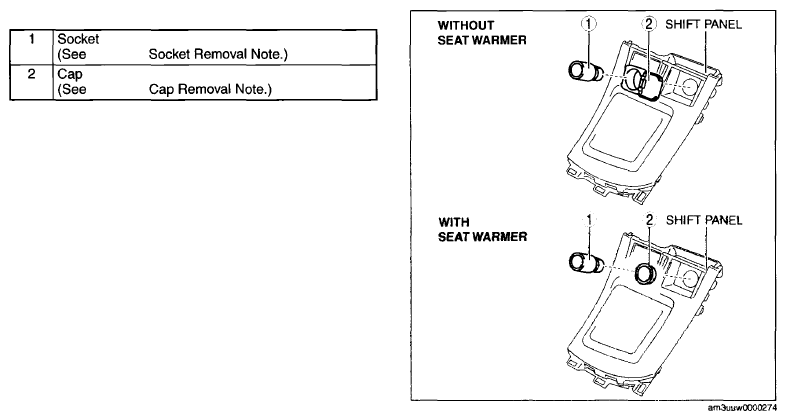

    Fig 1: Identifying Front Accessory Socket Removal Sequence
    G07876072Courtesy of FORD MOTOR CO.
  7. Install in the reverse order of removal.
