Clutch Release Cylinder Removal/Installation: Notes

CAUTION:

• Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
• If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

1. Remove in the order indicated in the figure.
2. Install in the reverse order of removal.
3. Bleed the air from the system. (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT .)
4. After installation, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION .)

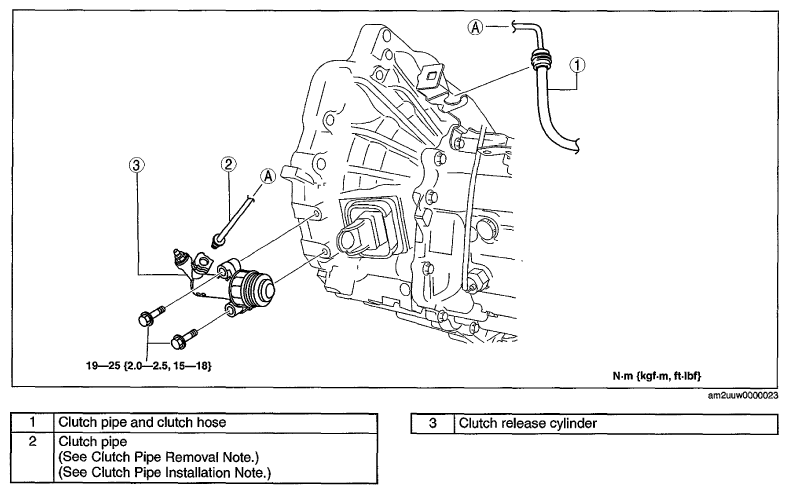

Fig 1: Clutch Release Cylinder Assembly Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
