Main Cable Component Installation Note

1. Working with two people, one person pushes the ends of the shift cable and selector cable (shift lever side) toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the shift cable and selector cable (transaxle side), and installs the seal plate.

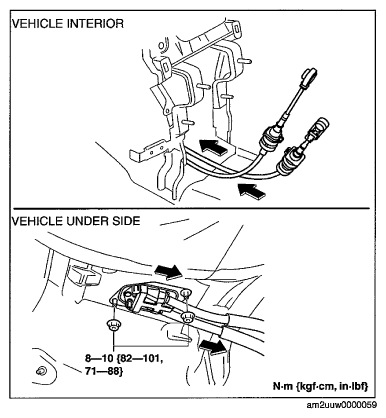

Fig 1: Installing Main Cable Component With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
