Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolts.
  3. Remove the rear buckle (RH) and rear buckle (center).
  4. Remove the rear buckle (LH).
  5. Install in the reverse order of removal.

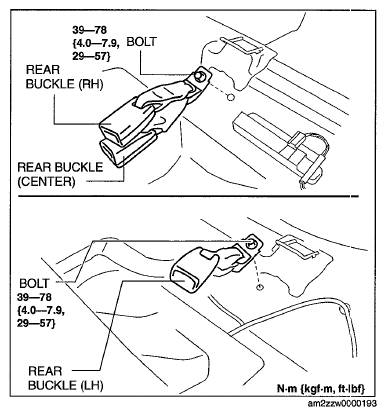

    Fig 1: Rear Buckles And Bolts With Torque Specifications
    G06941657Courtesy of MAZDA MOTORS CORP.
