LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2011
>>
2 Touring, 1.5 Z, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Location Index
Location Index

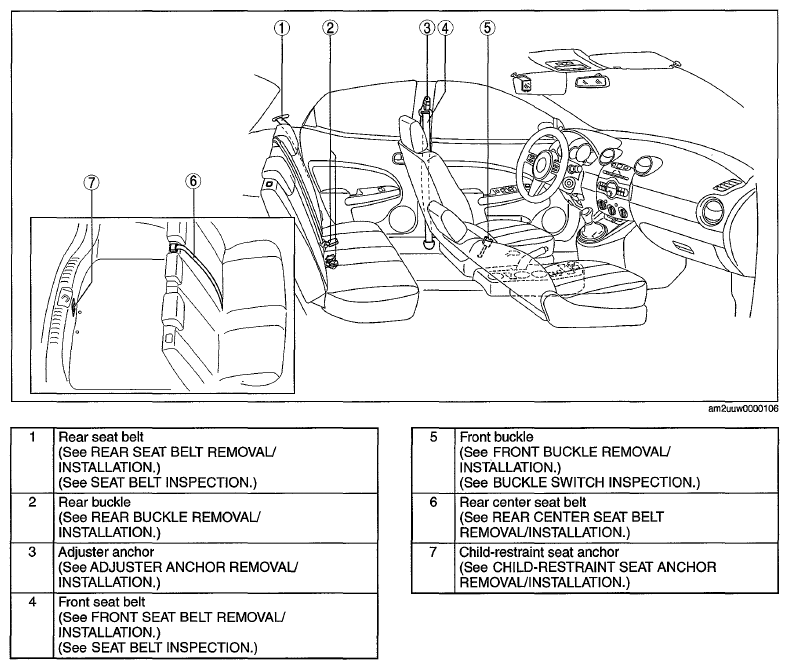

Fig 1: Identifying Seat Belt Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
