DTC P2123:00: Notes

DTC P2123:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2123:00 APP sensor No. 1 circuit high input
DETECTION CONDITION
  • If the input voltage is 4.8 V or more  , the PCM determines that the APP sensor No. 1 circuit input voltage is high.

    Diagnostic support note

  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • APP sensor connector or terminals malfunction
  • PCM connector or terminals malfunction

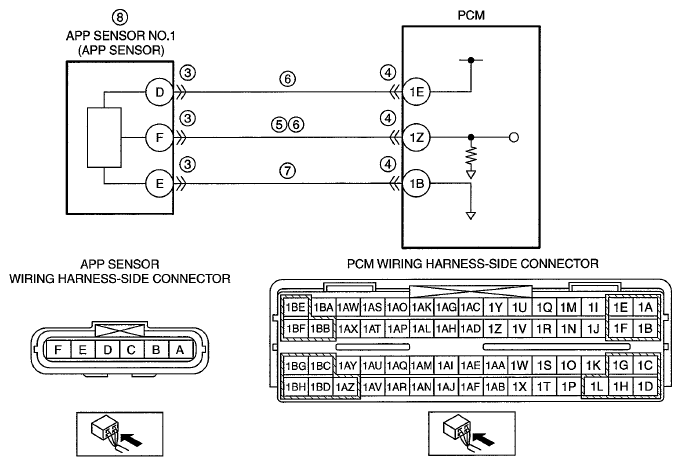

  • Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1Z
  • APP sensor No. 1 power supply circuit and signal circuit are shorted to each other
  • Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1B
  • APP sensor No. 1 malfunction
  • PCM malfunction
G06940414
