DTC P2008:00: Notes

DTC P2008:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2008:00	Variable tumble control circuit problem
DETECTION CONDITION	If the PCM turns the variable tumble shutter valve actuator to open or close but voltages and current do not coincide with the PCM signal voltages and current, the PCM determines that the variable tumble control circuit has a malfunction. Variable tumble control IC error. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

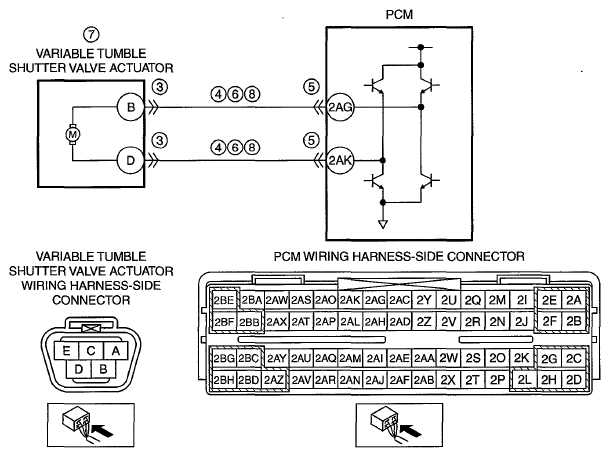

POSSIBLE CAUSE	Variable tumble shutter valve actuator connector or terminals malfunction Short to ground in wiring harness between the following terminals: Variable tumble shutter valve actuator terminal B-PCM terminal 2AG Variable tumble shutter valve actuator terminal D-PCM terminal 2AK PCM connector or terminals malfunction Short to power supply in wiring harness between the following terminals: Variable tumble shutter valve actuator terminal B-PCM terminal 2AG Variable tumble shutter valve actuator terminal D-PCM terminal 2AK Variable tumble shutter valve actuator malfunction Open circuit in wiring harness between the following terminals: Variable tumble shutter valve actuator terminal B-PCM terminal 2AG Variable tumble shutter valve actuator terminal D-PCM terminal 2AK PCM malfunction
