DTC P2006:00: Notes

DTC P2006:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P2006:00	Variable tumble shutter valve stuck closed
DETECTION CONDITION	The PCM monitors the variable tumble shutter valve position using the variable tumble shutter valve position sensor. If the PCM turns the variable tumble shutter valve off but the variable tumble shutter valve position still remain close for 5 s (the variable tumble shutter valve position sensor off), the PCM determines that the variable tumble shutter valve has been stuck closed. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

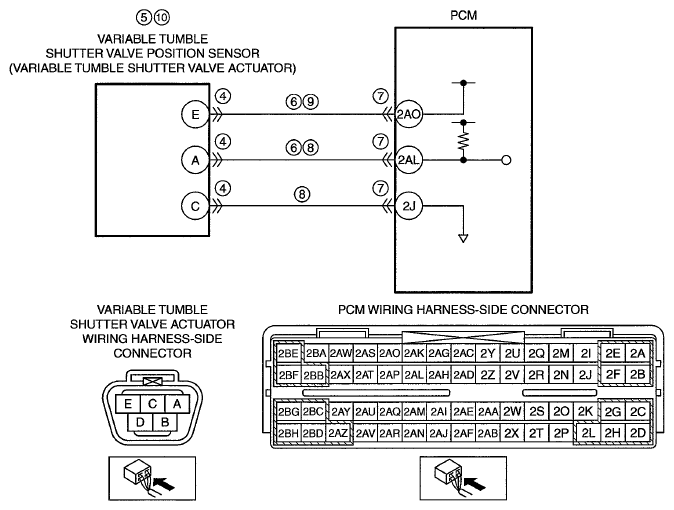

POSSIBLE CAUSE	Variable tumble shutter valve actuator connector or terminals malfunction Variable tumble shutter valve actuator malfunction (stuck closed) Short to ground in wiring harness between the following terminals: Variable tumble shutter valve actuator terminal E-PCM terminal 2AO Variable tumble shutter valve actuator terminal A-PCM terminal 2AL PCM connector or terminals malfunction Variable tumble shutter valve position sensor signal circuit and ground circuit are shorted to each other Open circuit in wiring harness between variable tumble shutter valve actuator terminal E and PCM terminal 2AO Variable tumble shutter valve position sensor malfunction PCM malfunction
