DTC P0335:00: Notes
DTC P0335:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0335:00 |
CKP sensor circuit problem |
| DETECTION CONDITION |
- If the PCM does not receive the input voltage from the CKP sensor for 4.2 s
while the MAF is 1.95 g/s {0.25 lb/min} or more,
the PCM determines that the CKP sensor circuit has a malfunction.
- If a malfunction is detected in the input pulse pattern from the CKP sensor.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- CKP sensor connector or terminals malfunction

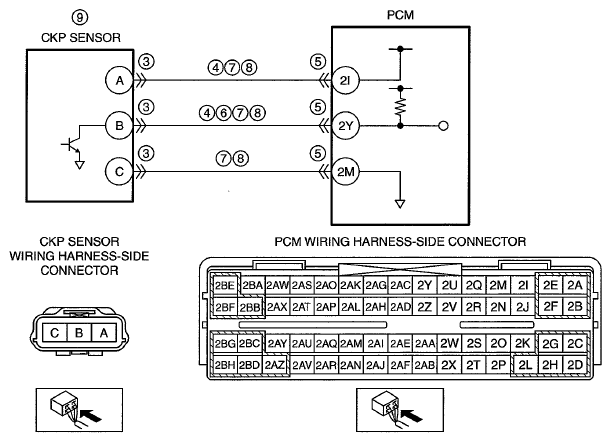

- Short to ground in wiring harness between the following terminals:
- CKP sensor terminal A-PCM terminal 2I
- CKP sensor terminal B-PCM terminal 2Y
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between CKP sensor terminal B and PCM terminal 2Y
- CKP sensor circuits are shorted to each other
- Open circuit in wiring harness between the following terminals:
- CKP sensor terminal A-PCM terminal 2I
- CKP sensor terminal B-PCM terminal 2Y
- CKP sensor terminal C-PCM terminal 2M
- CKP sensor malfunction
- CKP sensor is dirty
- CKP sensor pulse wheel malfunction
- PCM malfunction
|
|
|
