DTC P0328:00: Notes

DTC P0328:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0328:00 KS circuit high input
DETECTION CONDITION
  • The PCM monitors input signal from the KS. If the input voltage is more than 3.75 V  for 5 s  , the PCM determines that the KS circuit has a malfunction.

    Diagnostic support note

  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • KS connector or terminals malfunction
  • KS malfunction
  • PCM connector or terminals malfunction

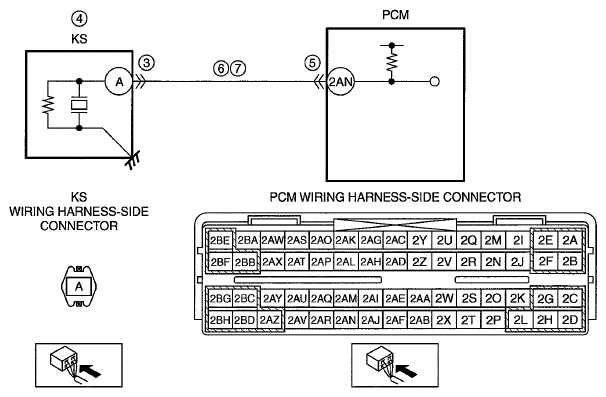

  • Short to power supply in wiring harness between KS terminal A and PCM terminal 2AN
  • Open circuit in wiring harness between KS terminal A and PCM terminal 2AN
  • PCM malfunction
G06940378
