DTC P0327:00: Notes

DTC P0327:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0327:00 KS circuit low input
DETECTION CONDITION
  • The PCM monitors input signal from the KS. If the input voltage is less than 1.25 V  for 5 s  , the PCM determines that the KS circuit has a malfunction.

    Diagnostic support note

  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • KS connector or terminals malfunction
  • KS malfunction

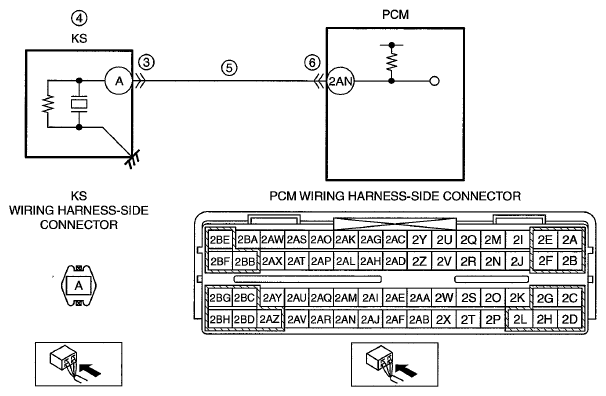

  • Short to ground in wiring harness between KS terminal A and PCM terminal 2AN
  • PCM connector or terminals malfunction
  • PCM malfunction
G06940377
