DTC P0222:00: Notes
DTC P0222:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0222:00 |
TP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- If the input voltage is less than 0.1 V
, the PCM determines that the TP sensor No. 2 circuit input voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

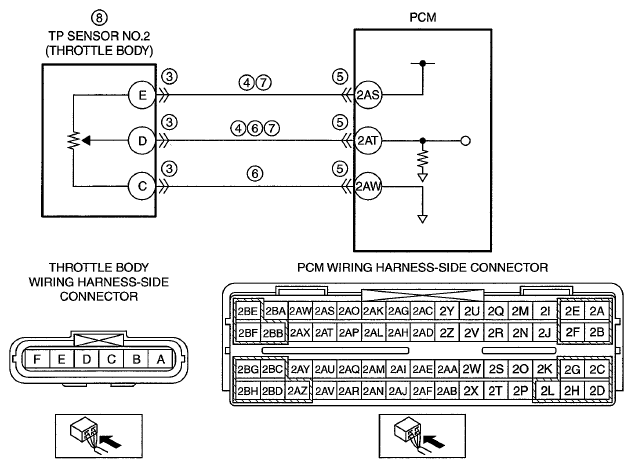

| POSSIBLE CAUSE |
- Throttle body connector or terminals malfunction
- Short to ground in wiring harness between the following terminals:
- Throttle body terminal E-PCM terminal 2AS
- Throttle body terminal D-PCM terminal 2AT
- PCM connector or terminals malfunction
- TP sensor No. 2 signal circuit and ground circuit are shorted to each other
- Open circuit in wiring harness between the following terminals:
- Throttle body terminal E-PCM terminal 2AS
- Throttle body terminal D-PCM terminal 2AT
- TP sensor No. 2 malfunction
- PCM malfunction
|
|
|
