DTC P0130:00: Notes

DTC P0130:00 (MZR 1.5) DIAGNOSTIC PROCEDURE

DTC P0130:00	A/F sensor circuit problem
DETECTION CONDITION	If the A/F sensor electrical resistance is 500 ohms or more for 2 s or more even though the A/F sensor heater is operated. Diagnostic support note This is an intermittent monitor (A/F sensor, HO2S). The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

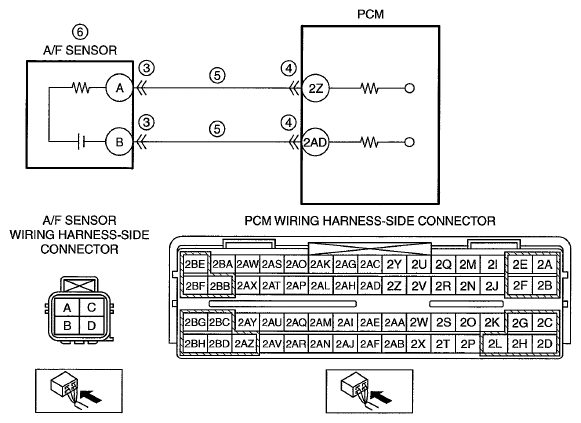

POSSIBLE CAUSE	A/F sensor connector or terminals malfunction PCM connector or terminals malfunction Open circuit in wiring harness between the following terminals: A/F sensor terminal A-PCM terminal 2Z A/F sensor terminal B-PCM terminal 2AD A/F sensor malfunction PCM malfunction
