DTC P0117:00: Notes

DTC P0117:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0117:00 ECT sensor No. 1 circuit low input
DETECTION CONDITION
  • The PCM monitors the ECT sensor No. 1 signal. If the PCM detects that the ECT sensor No. 1 voltage is below 0.2 V for 5 s  , the PCM determines that the ECT sensor No. 1 circuit has a malfunction.

    Diagnostic support note

  • This is a continuous monitor (engine cooling system).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Engine overheating (cooling system malfunction)
  • ECT sensor No. 1 connector or terminals malfunction
  • ECT sensor No. 1 malfunction
  • Short to ground in wiring harness between ECT sensor No. 1 terminal A and PCM terminal 2AC
  • PCM connector or terminals malfunction
  • ECT sensor No. 1 signal circuit and ground circuit are shorted to each other
  • PCM malfunction

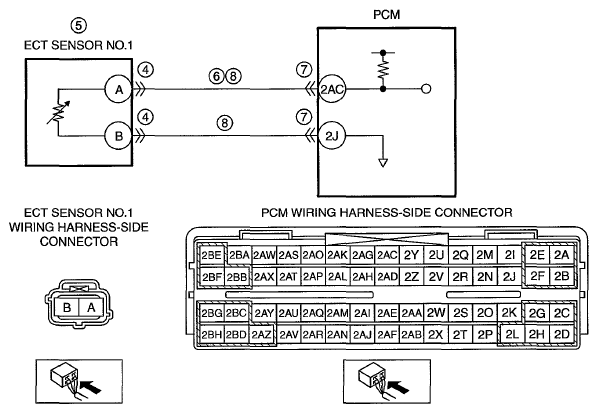

G06940364
