DTC P0107:00: Notes

DTC P0107:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0107:00 MAP sensor circuit low input
DETECTION CONDITION
  • The PCM monitors the input voltage from the MAP sensor. If the input voltage is less than 0.1 V  for 5 s  , the PCM determines that the MAP sensor circuit has a malfunction.

    Diagnostic support note

  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • MAP sensor connector or terminals malfunction
  • Short to ground in wiring harness between the following terminals:
    • MAP sensor terminal C-PCM terminal 2AO
    • MAP sensor terminal B-PCM terminal 2AP
  • PCM connector or terminals malfunction
  • MAP sensor signal circuit and ground circuit are shorted to each other
  • Open circuit in wiring harness between MAP sensor terminal C and PCM terminal 2AO
  • MAP sensor malfunction
  • PCM malfunction

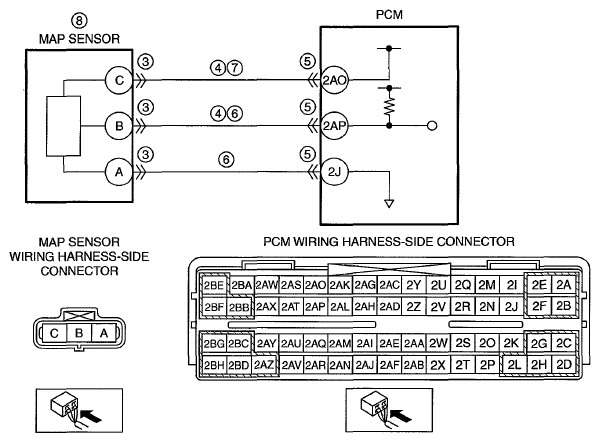

G06940360
