DTC P0032:00: Notes

DTC P0032:00 (MZR 1.5) DETECTION CONDITION AND POSSIBLE CAUSES

DTC P0032:00 A/F sensor heater control circuit high input
DETECTION CONDITION
  • The PCM monitors the A/F sensor heater control voltage when the PCM turns the A/F sensor heater off. If the control voltage exceeds 10 %  of the battery voltage, the PCM determines that the A/F sensor heater control circuit voltage is high.

    Diagnostic support note

  • This is an intermittent monitor (A/F sensor heater, HO2S heater).
  • The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
  • PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
  • FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • A/F sensor connector or terminals malfunction
  • A/F sensor heater malfunction
  • PCM connector or terminals malfunction

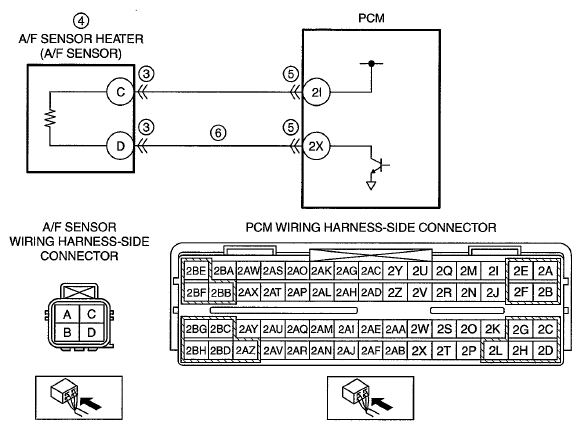

  • Short to power supply in wiring harness between A/F sensor terminal D and PCM terminal 2X
  • PCM malfunction
G06940353
