Power Outer Mirror Removal/Installation

Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Disconnect the power outer mirror connector.

Fig 1: Identifying Power Outer Mirror And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Remove the power outer mirror by pulling it in the direction of the arrow shown in illustration to release the tab.
Install in the reverse order of removal.

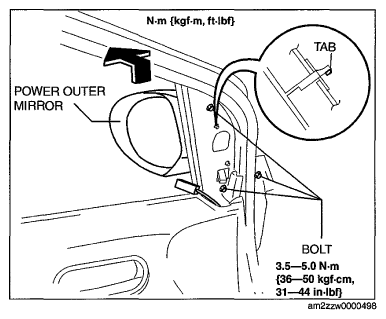

Fig 2: Power Outer Mirror With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
