Relay Location

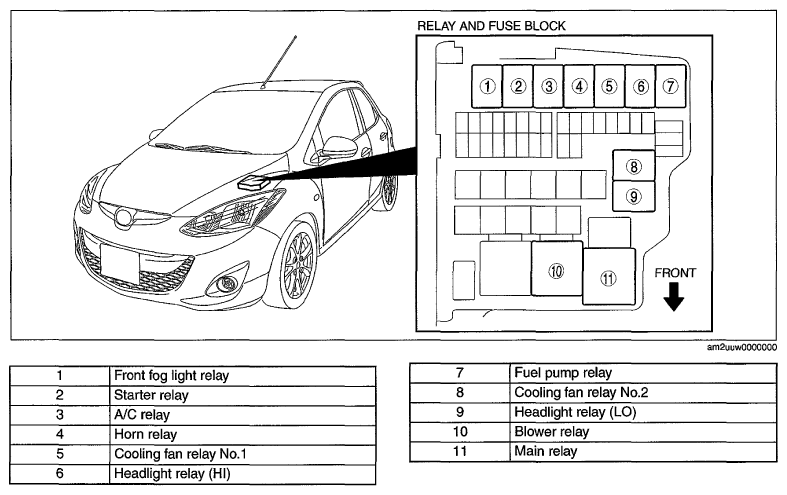

Fig 1: Identifying Relay And Fuse Box Location

G06942374

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Light Relay
Starter Relay
A/C Relay
Horn Relay
Cooling Fan Relay No. 1
Headlight Relay (Hi)
Fuel Pump Relay
Cooling Fan Relay No. 2
Headlight Relay (Lo)
Blower Relay
Main Relay
