Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

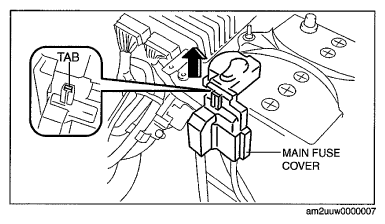

    Fig 1: Removing Main Fuse Cover
    G06942362Courtesy of MAZDA MOTORS CORP.
  3. Remove nuts A, B, and C shown in the figure.
  4. Remove the main fuse.
  5. Install in the reverse order of removal.
Fig 2: Main Fuse And Nuts With Torque Specifications
G06942363Courtesy of MAZDA MOTORS CORP.
