Rear Power Window Regulator Removal/Installation

  1. To access the glass installation bolt, adjust the position of the rear door glass that the height of the rear door glass towards the front is approx. 200 mm {7.87 in}.

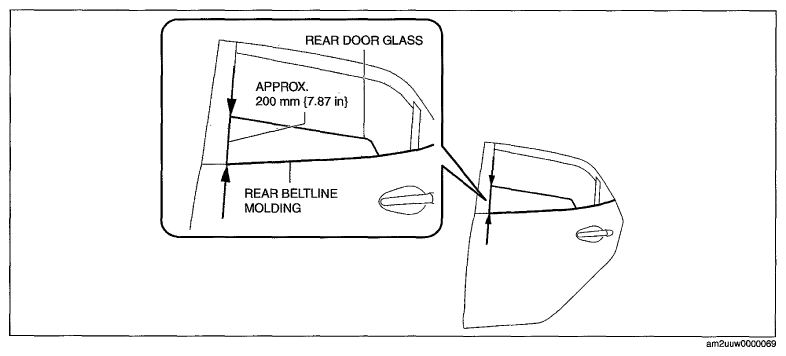

    Fig 1: Identifying Rear Door Glass Height From Beltline Molding
    G06941890Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION .)
    2. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
    3. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    4. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  4. Remove the nuts.

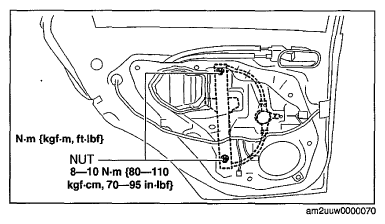

    Fig 2: Rear Power Window Motor Nuts With Torque Specification
    G06941891Courtesy of MAZDA MOTORS CORP.
  5. Insert your hand through the rear door speaker installation hole, rotate the drum housing in the direction shown in illustration and disengage the tabs from the rear door module panel.

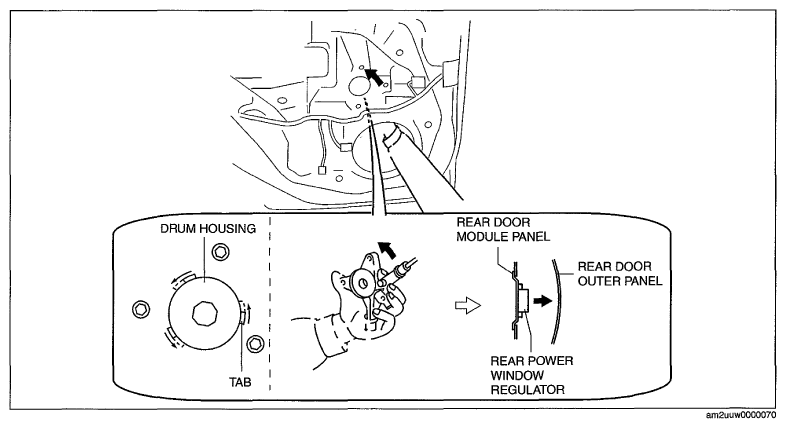

    Fig 3: Rotating Drum Housing
    G06941892Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear power window regulator from the rear speaker installation hole.
  7. Install in the reverse order of removal.
    CAUTION:
    • When installing, do not allow the cable to come out from the drum housing.
    Fig 4: Identifying Rear Power Window Regulator
    G06941893Courtesy of MAZDA MOTORS CORP.
