Transmitter Id Code Registration [Keyless Entry System]

NOTE:
  • Verify that the other transmitter is not being operated around the servicing area while updating the ID code.
  • After completing the work, remove the key from the steering lock and verify that all the door lock/unlock operation using the transmitter is correct.

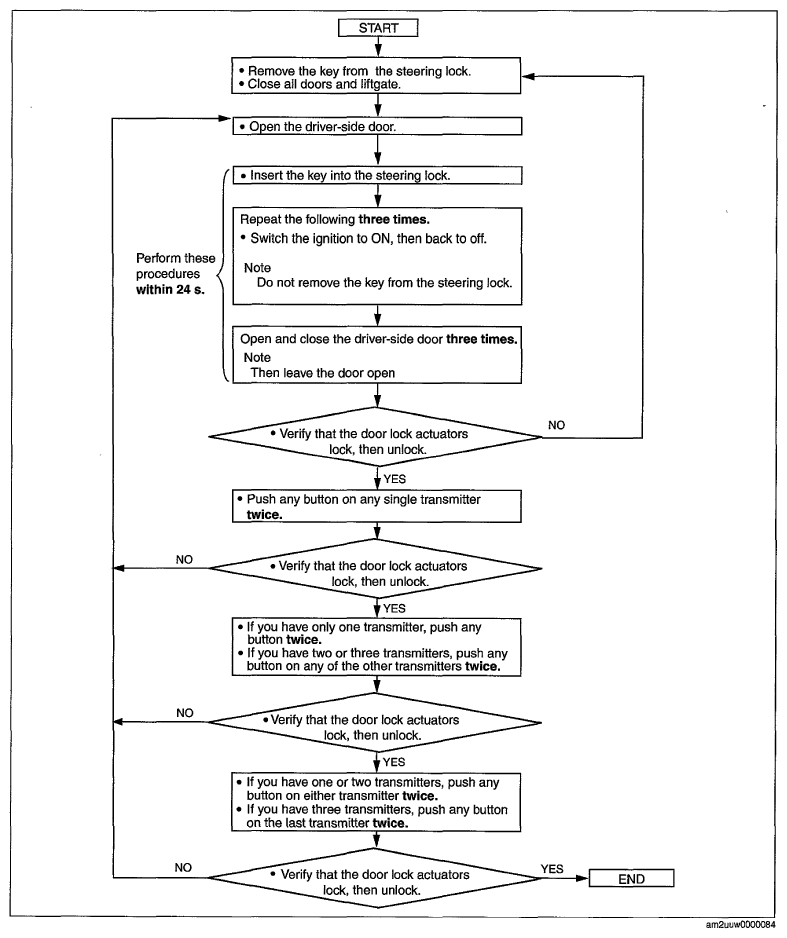

Fig 1: Identifying Transmitter ID Code Registration Procedure Chart (Keyless Entry System)
G06942079Courtesy of MAZDA MOTORS CORP.
