Keyless Receiver Removal/Installation [Keyless Entry System]

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    CONNECTOR TERMINAL REFERENCE CHART

    1 Connector
    2 Nut
    3 Keyless receiver
  4. Install in the reverse order of removal.

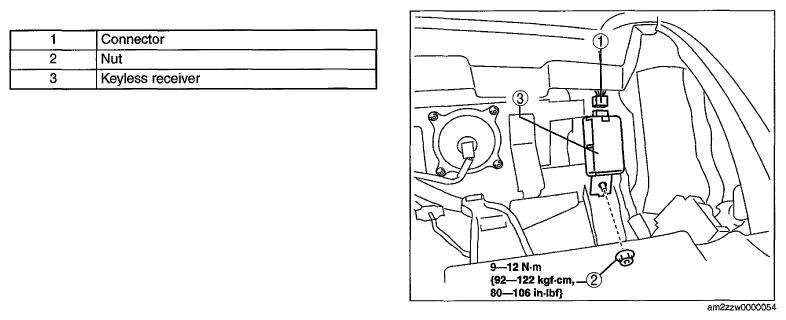

    Fig 1: Keyless Receiver Nut And Connector With Torque Specifications
    G06942072Courtesy of MAZDA MOTORS CORP.
