Front Outer Handle Removal/Installation
>>
Outer handle bracket Installation Note
Outer handle bracket Installation Note
Hook the outer handle bracket tabs as shown in illustration.

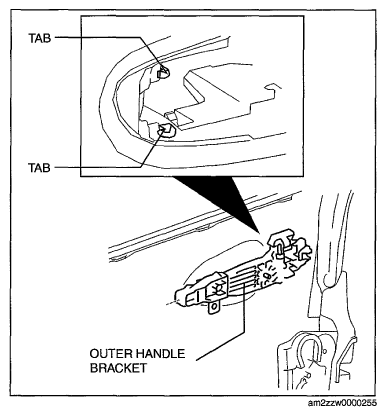

Fig 1: Identifying Outer Handle Bracket Tabs
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
