Control System Device And Control Relationship Chart

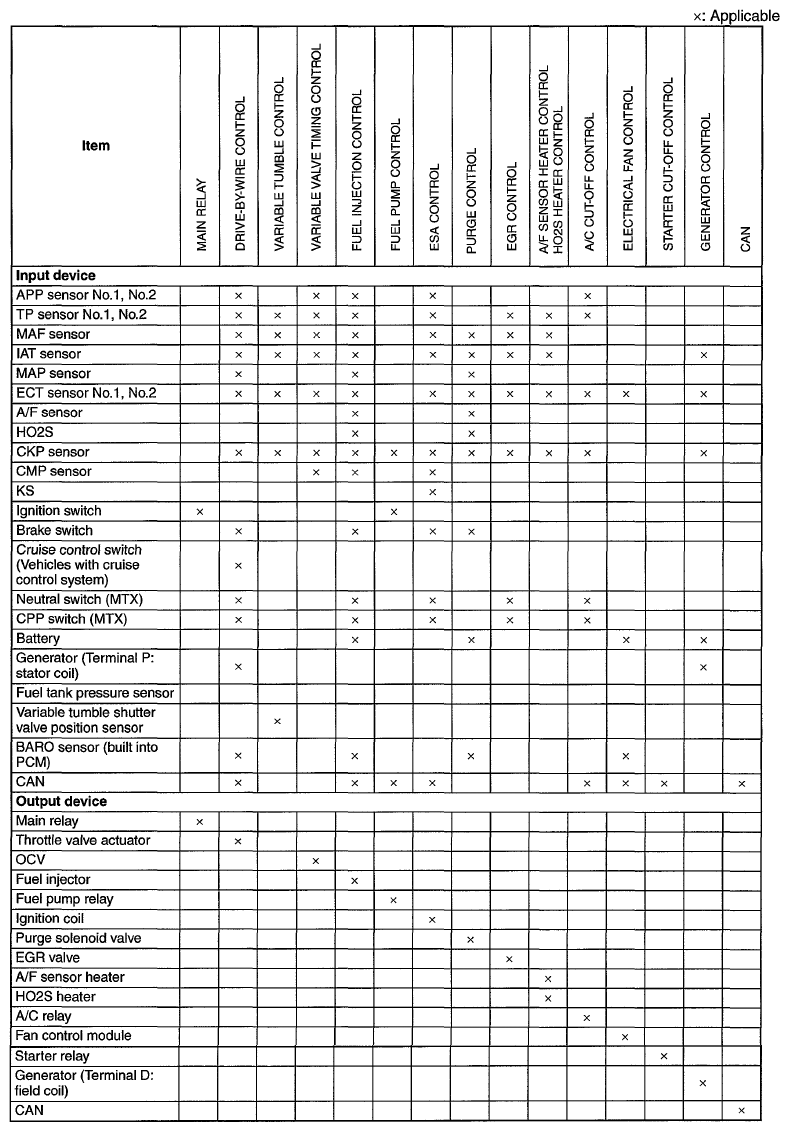

Fig 1: Control System Device And Control Relationship Chart (MZR 1.5)

G06940423

Courtesy of MAZDA MOTORS CORP.
