Selector Cable Removal Note: Notes

  1. Working with two people, one person pushes the ends of the selector cable toward the inside of the vehicle, and at the same time, the other person pulls out the selector cable by pulling the ends of the selector cable.

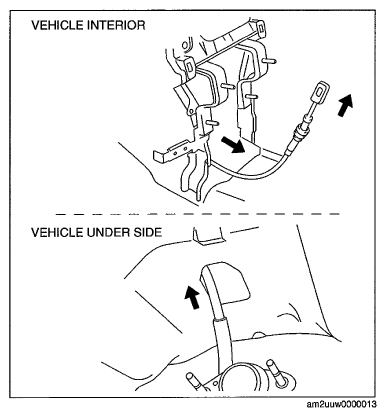

Fig 1: Removing Selector Cable
G06941305Courtesy of MAZDA MOTORS CORP.
