Rearview Mirror Removal

  1. Insert a flathead screwdriver between the rearview mirror and mirror base.
  2. Insert a tape-wrapped flathead screwdriver to the position shown in illustration and press the center part of the spring.

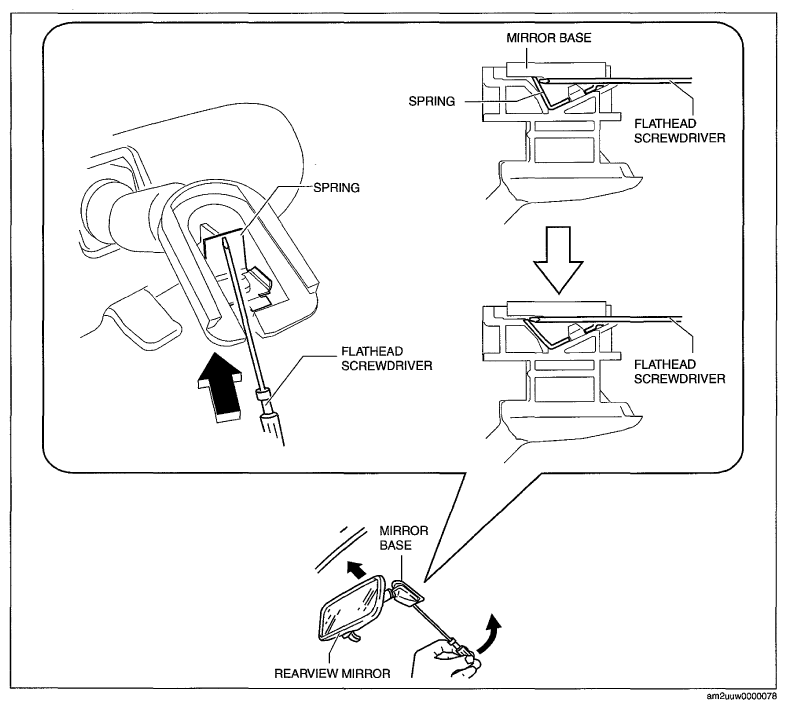

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Between Rearview Mirror And Mirror Base
    G06941921Courtesy of MAZDA MOTORS CORP.
  3. Pull out the rearview mirror toward the vehicle rear.
