Interlock Cable Inspection

Disconnect the interlock cable from the selector lever component.
Switch the ignition to ON.

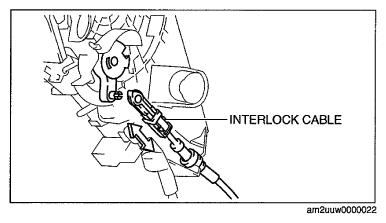

Fig 1: Disconnecting Interlock Cable From Selector Lever Component
Courtesy of MAZDA MOTORS CORP.
Verify that the interlock cable moves smoothly when the brake pedal is depressed.
- If there is any malfunction, replace the interlock cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

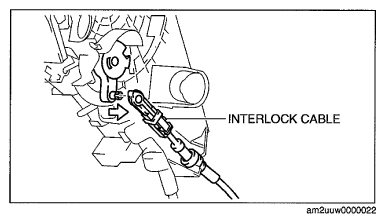

Fig 2: Disconnecting Interlock Cable From Selector Lever Component

Courtesy of MAZDA MOTORS CORP.
