Selector Cable Adjustment

  1. Shift the selector lever to the P position.
  2. Loosen the nut at the selector cable end.

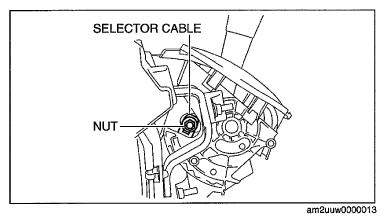

    Fig 1: Identifying Selector Cable And Nut
    G06941313Courtesy of MAZDA MOTORS CORP.
  3. Verify that the manual shaft is in the P position.

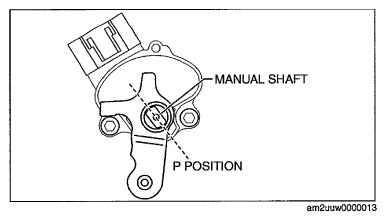

    Fig 2: Identifying Manual Shaft In P Position
    G06941314Courtesy of MAZDA MOTORS CORP.
  4. Tighten the nut at the selector cable end.

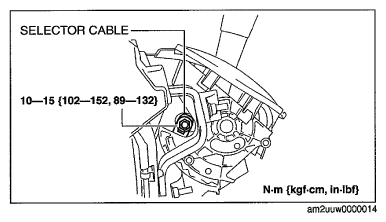

Fig 3: Selector Cable End And Nut With Torque Specifications
G06941315Courtesy of MAZDA MOTORS CORP.
