Seat Weight Sensor Control Module And Seat Weight Sensor Connector End View

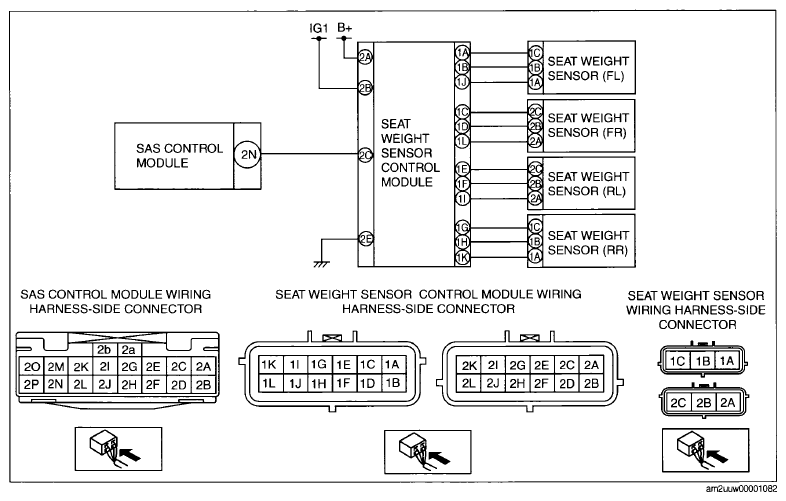

Fig 1: Seat Weight Sensor Control Module And Seat Weight Sensor Connector End View

G09130439

Courtesy of MAZDA MOTORS CORP.
