Cruise Control System Connector End View (0120)

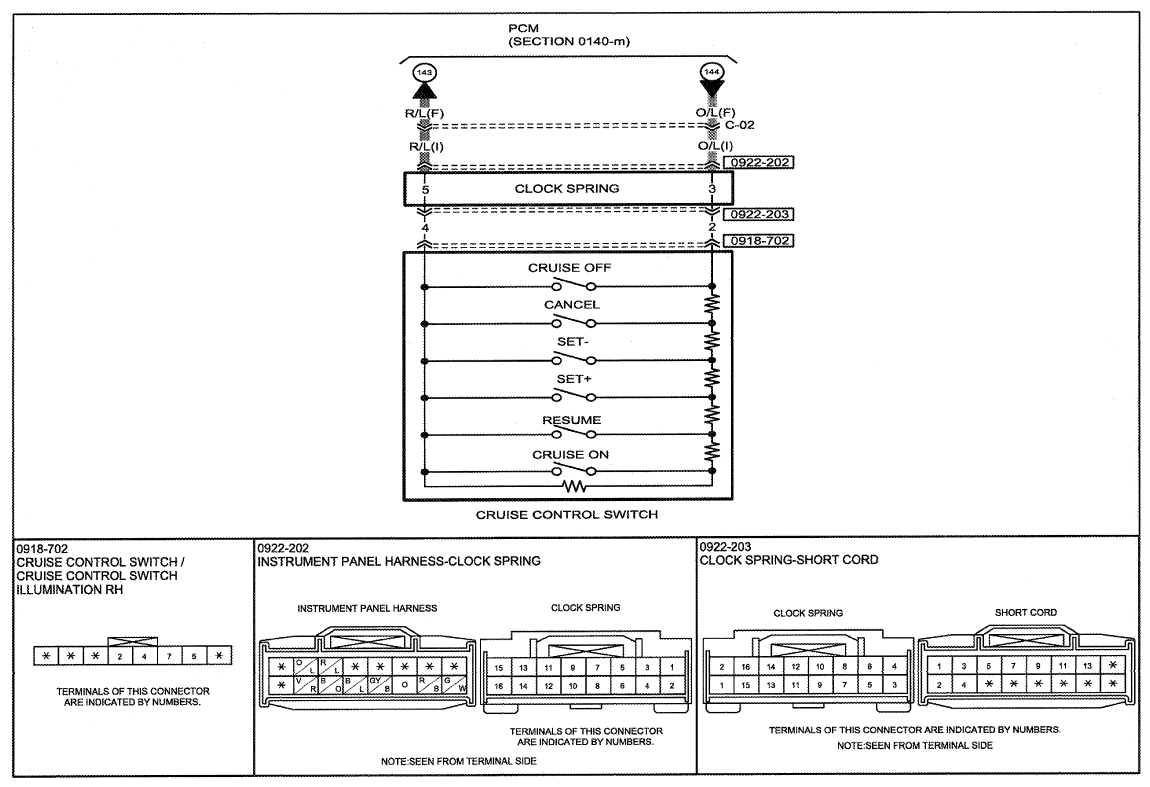

Fig 1: Cruise Control System Connector End View (0120)

G09119965

Courtesy of MAZDA MOTORS CORP.
