Cruise Control Switch Connector End View

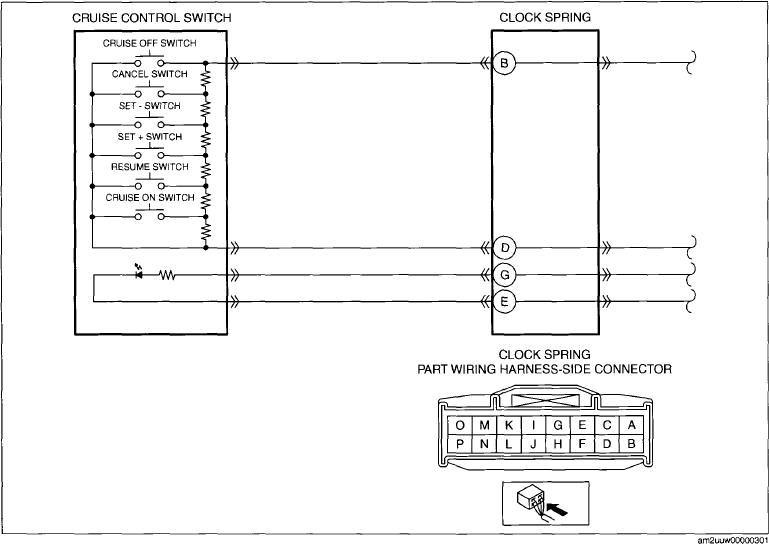

Fig 1: Cruise Control Switch Connector End View

G09130304

Courtesy of MAZDA MOTORS CORP.
