Crash Zone Sensor Connector End View

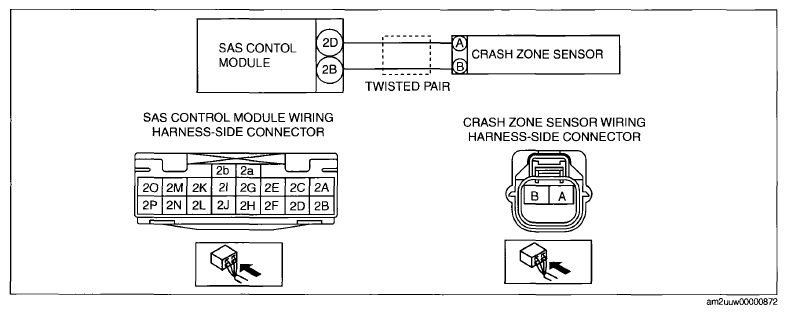

Fig 1: Crash Zone Sensor Connector End View

G09130434

Courtesy of MAZDA MOTORS CORP.
