Air Bag Clock Spring Connector End View

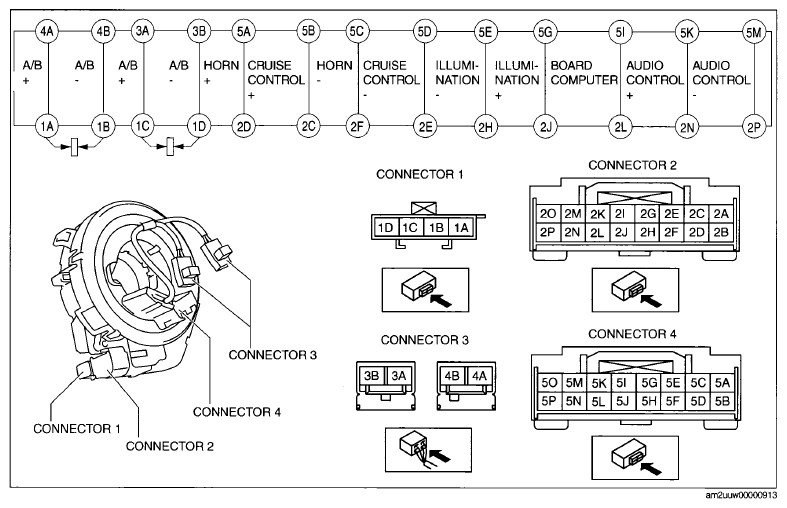

Fig 1: Air Bag Clock Spring Connector End View

G09132982

Courtesy of MAZDA MOTORS CORP.
