Instrument Cluster System -- Connector End View

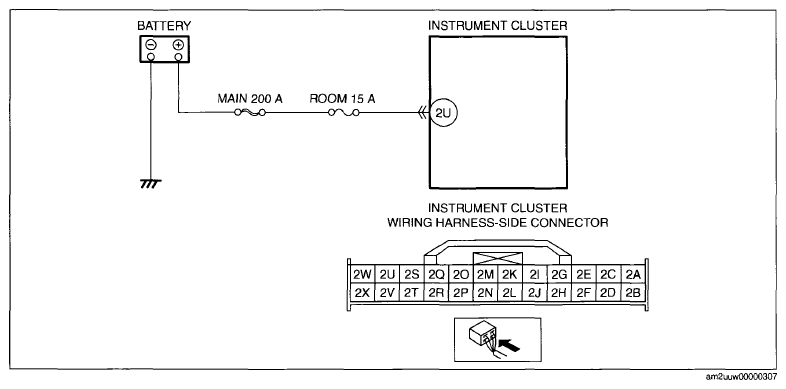

Fig 1: Instrument Cluster System -- Connector End View

G09133083

Courtesy of MAZDA MOTORS CORP.
