BCM (Body Control Module) Connector End View (0940-K)

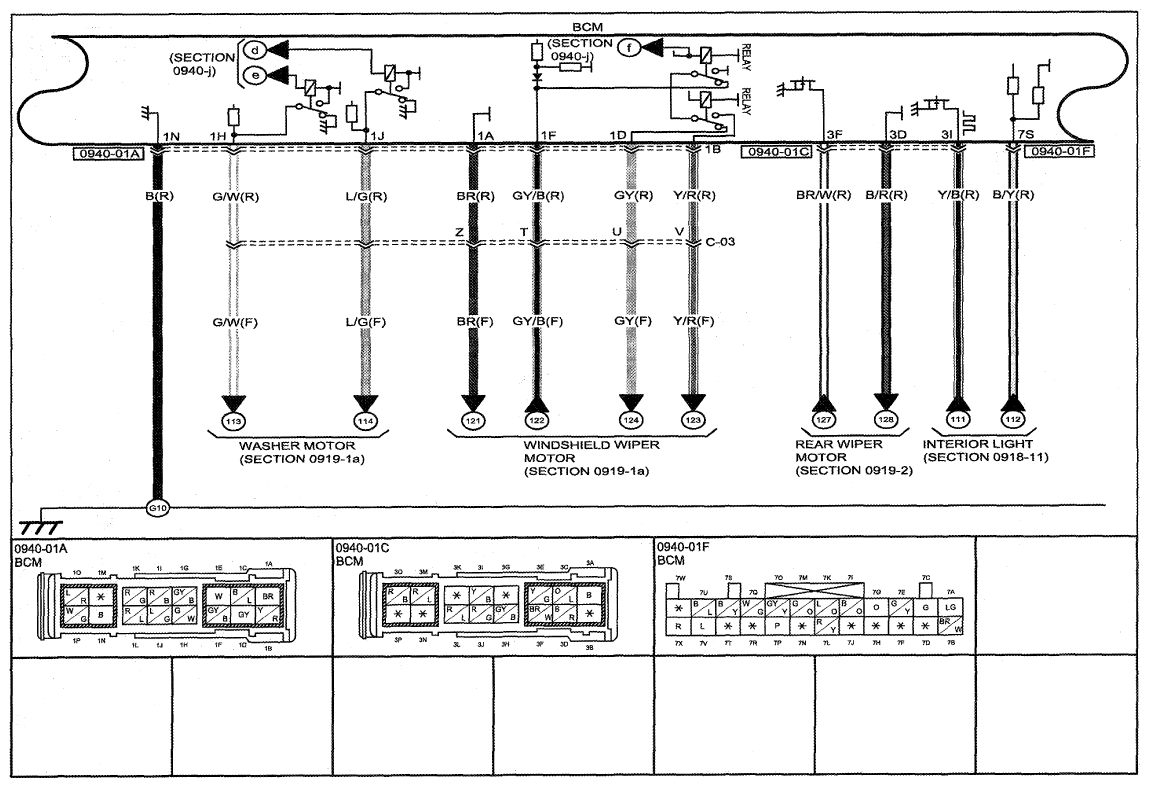

Fig 1: BCM (Body Control Module) Connector End View (0940-K)

G09120123

Courtesy of MAZDA MOTORS CORP.
