Automatic Transaxle Control System Connector End View (140-J)

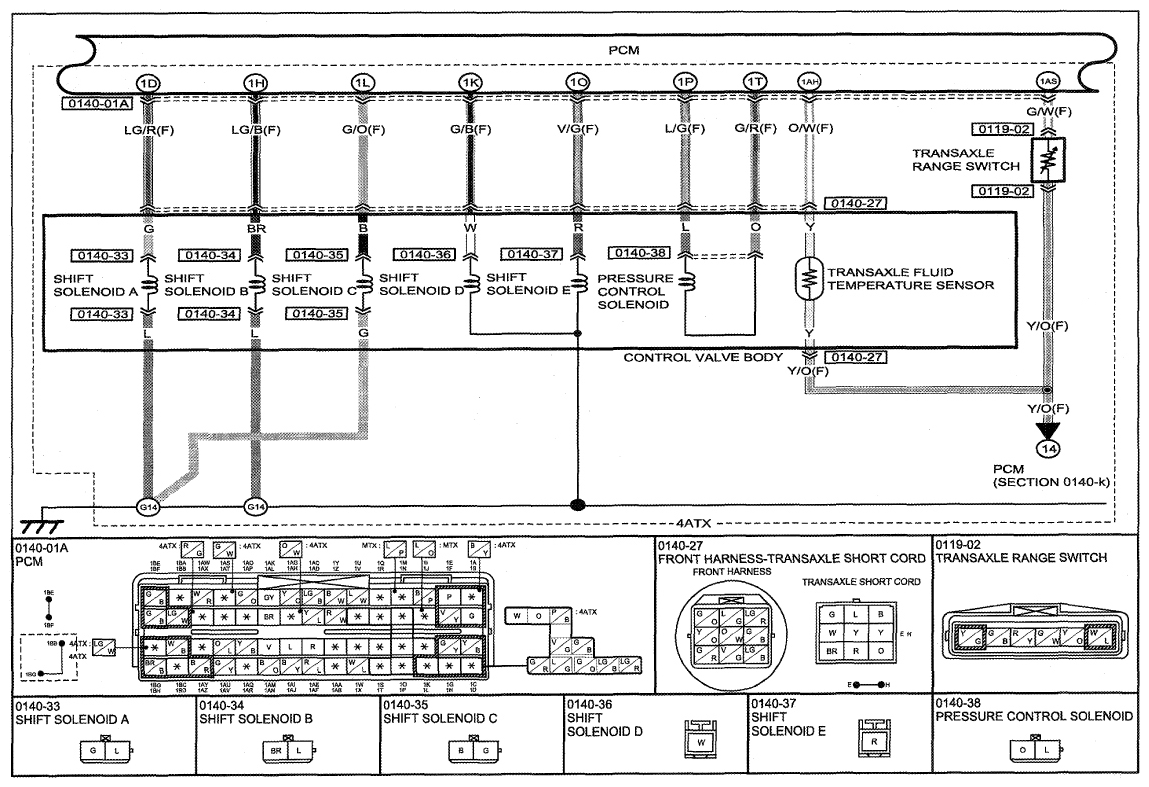

Fig 1: Automatic Transaxle Control System Connector End View (140-J)

G09119985

Courtesy of MAZDA MOTORS CORP.
