Wheel Hub Component Disassembly Note: Notes

  1. Remove the wheel hub component using the SSTs.
  2. If the bearing inner race remains on the front wheel hub component, perform the following procedures.

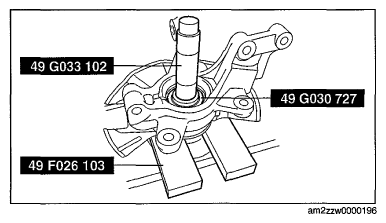

Fig 1: Removing Wheel Hub Component Using SSTs
G06940905Courtesy of MAZDA MOTORS CORP.
