Wheel Hub Component Assembly Note

  1. Install the steering knuckle to the wheel hub component using the SSTs.

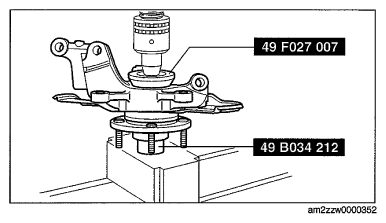

Fig 1: Installing Steering Knuckle To Wheel Hub Component Using SSTs
G06940916Courtesy of MAZDA MOTORS CORP.
