Wheel Hub, Steering Knuckle Disassembly/Assembly: Notes

  1. Disassembly in the order indicated in the figure.

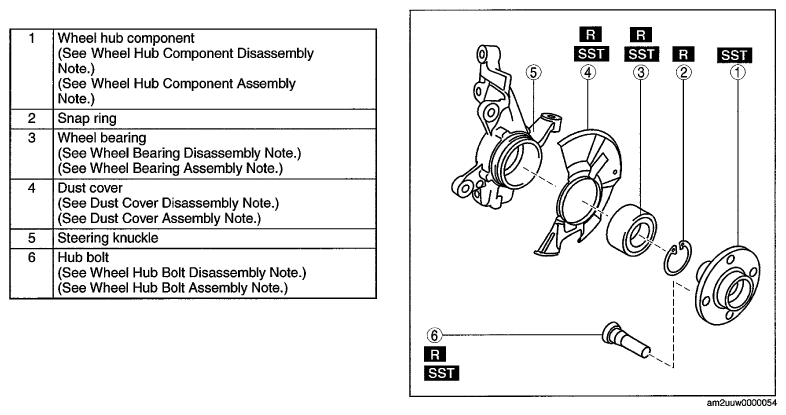

    Fig 1: Identifying Wheel Hub And Steering Knuckle Components
    G06940904Courtesy of MAZDA MOTORS CORP.
  2. Assembly in the reverse order of removal.
