Power Window System Wiring Diagram [Power Window System]

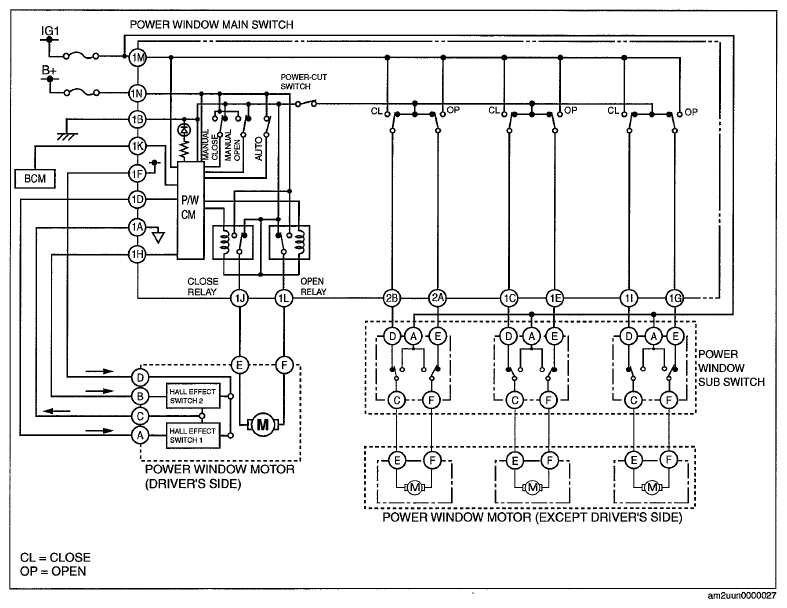

Fig 1: Power Window System Wiring Diagram

G06941741

Courtesy of MAZDA MOTORS CORP.
