Front Seat Back Trim Removal/Installation: Notes

WARNING:

Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

CAUTION:

After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.
Verify that there are no malfunctions in the sliding mechanism after installing a front seat.
When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.
If any of the following work is performed, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION .)
- Replacement with a new seat weight sensor
- Replacement with a new seat weight sensor control module
- Replacement with new passenger-side seat parts
- Disassembly of the passenger-side seat
If any of the following work is performed, perform the seat weight sensor inspection using the M-MDS. (See SEAT WEIGHT SENSOR INSPECTION .)
- Removal of the passenger-side seat
- Loosening and retightening of passenger-side seat fixing bolts

Switch the ignition to off.
Disconnect the negative battery cable and wait 1 min or more.
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the headrest.

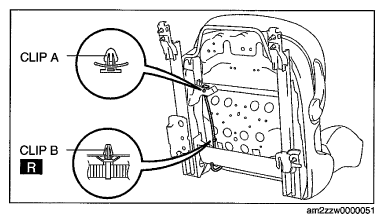

Detach clip A shown in the figure.
Cut clip B shown in the figure.

Fig 1: Identifying Clips
Courtesy of MAZDA MOTORS CORP.

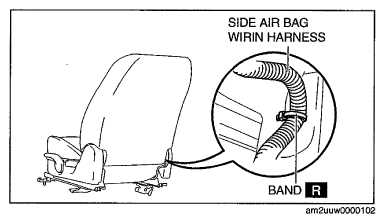

Cut the band securing the side air bag wiring harness. (See BAND INSTALLATION NOTE .)

Fig 2: Identifying Side Air Bag Wiring Harness And Band
Courtesy of MAZDA MOTORS CORP.

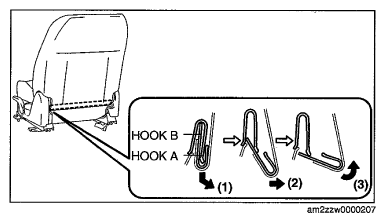

Slide hook A in the indicated of arrow (1), (2), (3) in the order shown in the figure to detach it from hook B.

Fig 3: Sliding Hook
Courtesy of MAZDA MOTORS CORP.
Open the fastener.

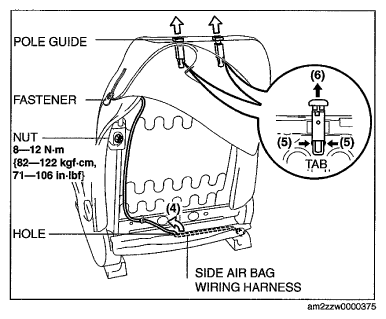

Pull out the side air bag wiring harness from the hole of the seat back trim and seat back pad by pulling it in the direction of arrow (4) shown in the figure.
Partially peal back the front seat back trim, release the pole guide tabs in the direction of arrow (5) shown in the figure, then pull the pole guide out in the direction of arrow (6).
Remove the nut.

Fig 4: Pulling Side Air Bag Wiring Harness From Seat Back Trim Hole
Courtesy of MAZDA MOTORS CORP.

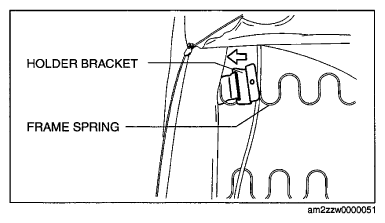

Press in the holder bracket to the seat back pad being careful not to catch the frame spring. (See HOLDER BRACKET INSTALLATION NOTE .)

Fig 5: Pressing Holder Bracket To Seat Back Pad
Courtesy of MAZDA MOTORS CORP.

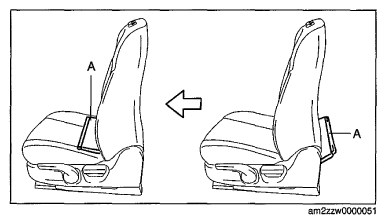

Pull out part A shown in the figure to the front.

Fig 6: Pulling Part A Of Front Seat
Courtesy of MAZDA MOTORS CORP.

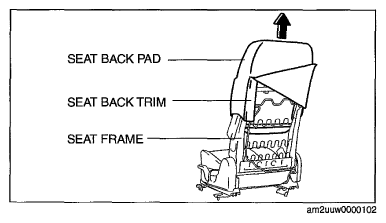

Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

Fig 7: Pulling Seat Back Pad And Trim
Courtesy of MAZDA MOTORS CORP.

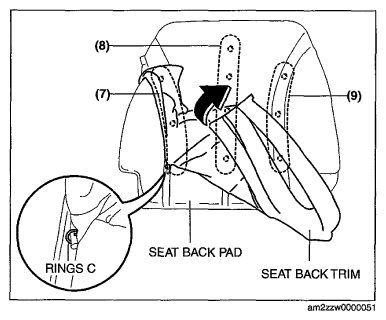

Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (7), (8), (9) shown in the figure, then remove the seat back trim.
Install in the reverse order of removal.
